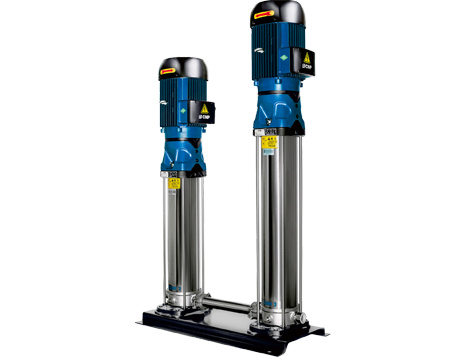

CNP CDMF+ CMH High Pressure pump

Technical Data:

Flow rate: 0.5 ~ 29m3/h

Head: 108m ~ 478m

Temp: -15℃ ~ +120℃

Power: 2.57kw ~ 37kw

Voltage: 220V/380V

Frequency: 50Hz

Material: Stainless steel

Applications：

Water treatment ultra-filtration system

RO system

High pressure washing system

Boosting system

Water supply

Summary:

1) CDMF + CMH series is a new generation of high efficiency, non-self-priming pumps independently developed according to European standards.

2) The product adopts a brand-new industrial design, and the energy efficiency index reaches MEI≥0.7

3) It is energy saving, low noise, environment friendly, compact design, beautiful shape, light, easy for service, high reliability.

Working conditions

Thin, clean, non-flammable, non-explosive, solid free, fiber free, physically and chemically water-like liquid.

Liquid temperature:

Normal temperature type: -15℃ to 70℃

Hot water type: -15℃ to 120℃

Ambient temperature: up to +40℃

Altitude: up to 1000m

Performance curve
Following conditions are suitable for performance curve below.
1.All curves are based on the measured values of 50Hz;constant motor speed 2900rpm or 2950rpm.
2.Curve tolerance in conformity with ISO9906:2012, Grade 3B.
3.Measurement is done with 20℃ air-free water, kinematic viscosity of 1mm2/sec.
4.The operation of pump shall refer to the performance region indicated by the thickened curve to prevent overheating due to too small flow rate

Place of origin : Zhejiang, China

Packing methods: Wooden box
