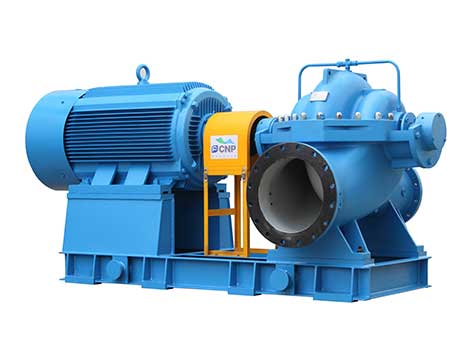

CNP NSC Single Stage Double Suction Split Case Pump

Technical Data:

Flow rate: 50 ~ 20,000m3/h

Head: 10m ~ 230m

Suction Dia: DN100 ~ 1,400mm

Discharge Dia: DN80 ~ 1,200mm

Operating Pressure: ≤5Mpa

Temp: -15℃ ~ +200℃ (Above 80℃ please contact us)

Abrasive medium concentration: ≤4%

Material: Cast Iron or SS316

Please contact us for datasheet for more details

Applications：

Clean water or medium similar to water in Physical and chemical properties.

Water supply / Drainage/ Irrigation/ Power station/ Hydropower station/ Fire-fighting/ Air-Conditioning/ Building industry/ Marine applications/ All kind of water for industrial process

Abrasive medium

Sand water/ Oxide scale water/ others

Corrosive medium

Desalination/ Bittern/ Sea water/ Others

High Temperature medium

Heating network circulating water

All kinds of chemical liquid

Petroleum and chemical liquids (According to API610 BB1)

Crude oil and refined oil/ Oil loading and unloading of oil terminal

All kinds of chemical liquid

Summary:

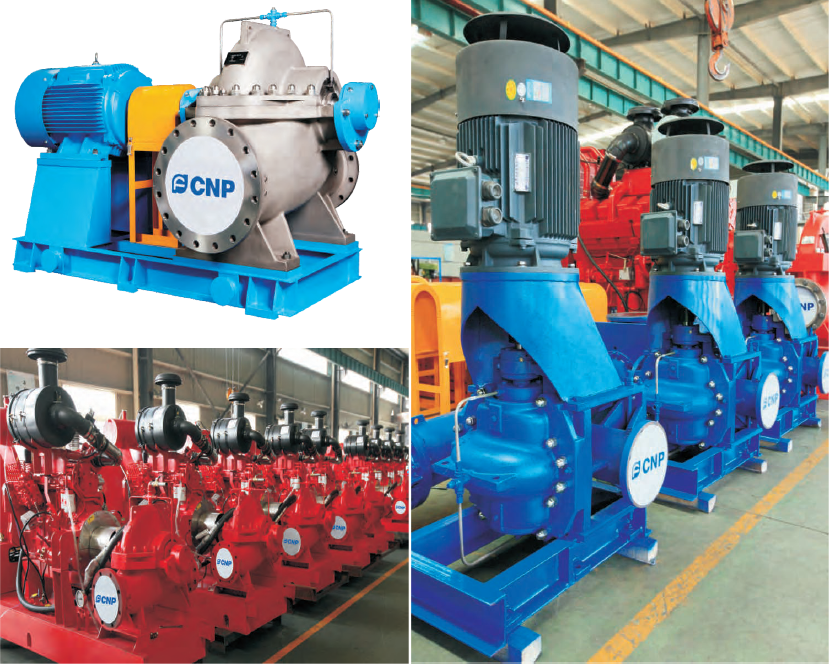

The pump is divided into horizontal installation and vertical installation, the pump shell is horizontally separated from the axis, the upper part is the pump cover, the lower part is the pump body. The suction inlet and outlet are on the pump body below the pump axis, and the center line of the impeller is perpendicular to the axis. The seal of the pump can be sealed with packing or mechanical seal.

The middle opening pump at high temperature adopts the center line support structure

The general assembly of the bearing part is the grease lubrication bearing part, and the high lift pump and the high temperature hot water are the thin oil lubricated bearing part with water cooling jacket structure.

The seal forms of the shaft seal are packing seal and mechanical seal.

Can adopt lubrication and shaft lubrication, the pump runs stably and the high efficiency area is wide.

Features and Advantages

The double suction pump enters water from both sides, and the pump has good cavitation performance, high efficiency and energy saving

The utility model has the advantage of simple installation, convenient maintenance and compact structure.

During maintenance, there is no need to disassemble the inlet and outlet pipes, open the pump cover and the rotor can be taken out for maintenance.

Place of origin : Zhejiang, China

Packing methods: Wooden box
